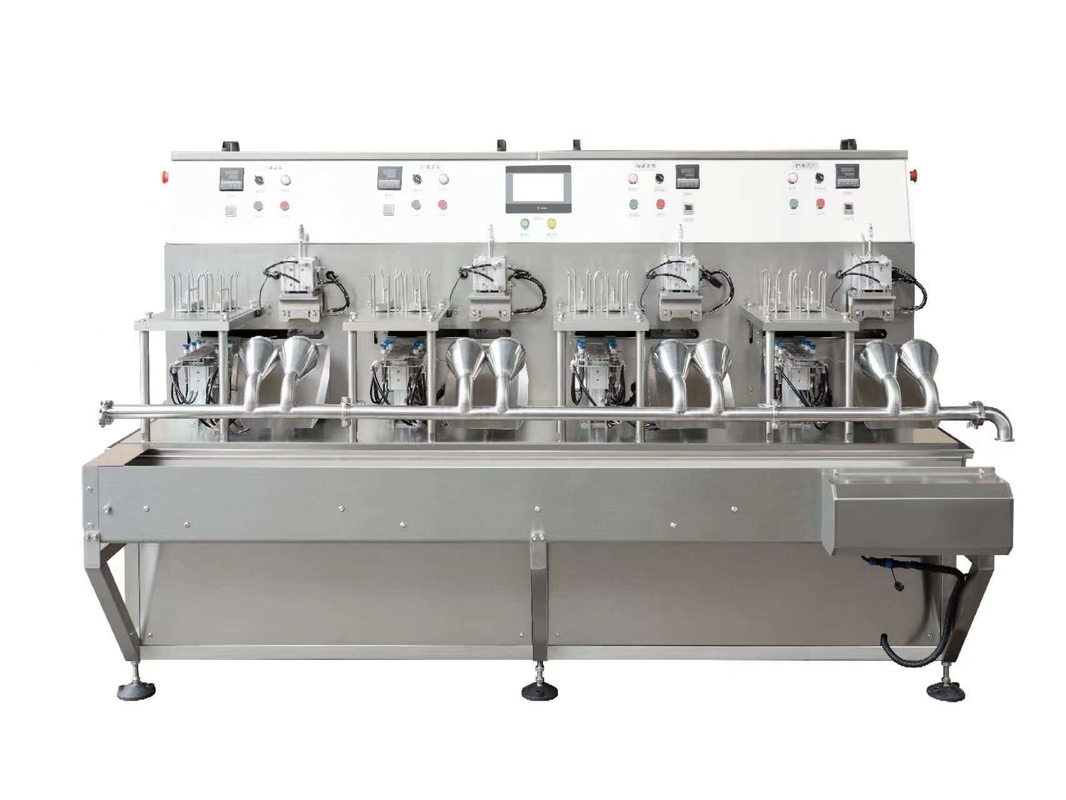

Fully automatic high-speed eight-head expansion bag automatic packaging machine

Fully automatic high-speed eight-head expansion bag automatic packaging machine

Rotary stand-up bag filling machines with 16 heads and 24 heads

9,000 to 12,000 bags per hour. 1. Capacity can be manually adjusted.

2. Equipped with CIP cleaning system

3. High single-machine production capacity and efficiency, with water as the medium

The capacity should be 100ml as the standard

Expansion bag filling machine: 2000-8000 bags per hour. 1. Servo capacity adjustment, simple operation, and stable performance

2. It has a high sealing efficiency with a leakage rate of 0.3%

3. Precise filling capacity, ±1ml production capacity in water medium

The capacity should be 100ml as the standard

Aluminum foil cap making machine: 6,000-24,000 pieces per hour. 1. For thick aluminum foil

2. It can produce high covers and special-shaped covers with a height ranging from 4.5 to 9mm

3. The formed shape is aesthetically pleasing. The production capacity is based on a height of 5mm and a diameter of 30 caps

PE bottle aluminum foil sealing and filling machine 24000BPH 1. Stable sealing with low leakage rate

2. It is equipped with a CIP system for both forward and reverse cleaning, which can achieve thorough cleaning of filling barrels and valves without any dead corners, and can reach ultra-clean levels up to 2.0 protein without the need for back-end sterilization.

3. High yield rate, compatible with various bottle types. The production capacity is based on water medium

The capacity should be 100ml as the standard

Committed to the production and research and development of equipment for food and beverage filling, we always take providing users with the best production solutions, the most advanced equipment and the most considerate services as our sole mission.

Note: Provide solutions to some common product quality issues of food and beverage contents.

I. Brief Technical Description

The filling valve nozzle at the position in contact with the material is made of 316 material, and the feeding hose and other parts are made of ordinary food hygiene grade hoses.

B. Single-point control for sealing, allowing for independent temperature control at a single point, can achieve no filling and no sealing without bags, with a sealing failure rate of three per thousand.

C. The air supply pressure of each head sealing cylinder can be controlled and adjusted at a single point, and the digital air pressure value can be visually and intuitively observed.

D. The stable filling speed is 7,000 bags per hour (with 100ml of water as the medium).

E. Servo motors are adopted to control quantitative filling, achieving digital and rapid capacity adjustment.

F. It can quickly change various bag types and is suitable for a wide range of bag types.

G. According to its own needs, CIP cleaning pipelines can be externally connected.

Ii. Technical Parameters

The number of filling and sealing heads is 8

Three-phase five-wire power supply voltage system; Class F insulation Voltage: 380V±5% Frequency: 50HZ±1%

The installed capacity is 4.8 KW

The flow rate of compressed air is 1.5 m ³ /min

The pressure of the compressed air is 0.4 to 0.6 Mpa

The filling feed pressure is 0.02 to 0.05 Mpa

Maximum output: 7,000 bags per hour (calculated with water as the medium and a capacity of 100ml)

The maximum filling capacity is 248 ml

Filling accuracy ≤±1 ml

Pre-formed bags with fixed bag shapes

Bag length: 160-320mm

The width of the bag is ≤80mm

The maximum position width of the opposite sex bag is no more than 80mm

The bag opening standards are uniform. The bags do not stick to each other, are flat and free of deformation.

The external dimensions of the main unit: length × width × height =2300×1500×1500

Three: Equipment Configuration List

The number name is noted

1. Stainless steel sus304

2. Pipeline valves are far safe

The domestic vacuum pump industry has made a leap forward

4. Domestic Albert vacuum suction cups

5. Bearings from Japan NSK

6 Plastic wear-resistant sleeves from IGus, Germany

7 Electric cylinders, Shenzhen Kewei

8. Domestic Inovance servo motors

10 Quantitative cylinder barrel SUS304

11. The air switch is made of domestic Chint

12 AC contactors are domestic from Chint

13 Thermal relays, domestic Chint

14 PLC Panasonic

15 Intermediate relay Panasonic

16 Touchscreen Venview

17 Switching power supply, Taiwan Mean Well

18 Pneumatic components, Airtac

19 Air pressure display, Airtac

Note

The above configuration mainly consists of the equipment required for production. Customers can select the range of matching according to their actual situation.

2. Regarding the configuration of purchased parts for the equipment, customers can choose the brand based on their usage habits. The supply can also be selected and replaced among the same brand according to the actual situation.

3. The bag samples required for the equipment during the commissioning process shall be prepared by the customer themselves.
