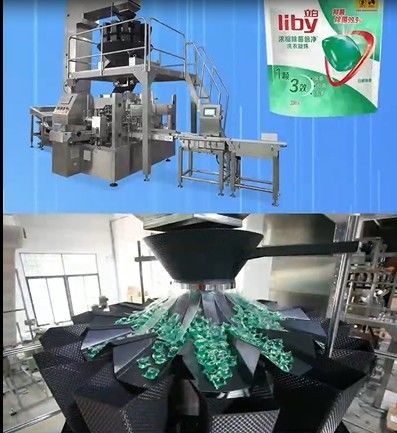

Laundry Pods Weighing And Packaging Production Line

Bag size: length ≤40cm  width≤26cm
Work Station: 8 stations
Packaging fomat: Pre-made bag: Flat bag, stand up bag, zipper bag and M type bag and so on.
Power supply: 380V
Air Consumption: 5-7kg/c㎡  0.4m³/min
File material: single PE, PE composite film, paper film and various other composite film
Total power: 8KW
Machine weight: 580kg
Machine outside dimension: 185*125*152cm
Brand of Main Components:
Relay system/safety door: Omron
Start/stop/emergency stop button system/indicator light: Schneider
Circuit breaker: Chint
Temperature controller: Yuyao
PLC: Qichuang
Touch screen: Kunlun Tongtai
Switching power supply: Taiwan MeanWell
Servo motor: Huichuan
Reducer: Xinbao
Cylinder: AirTac

Weighing Range:10-1500g
Weighing Accuracy±0.1-1.5g
Max. Speed: 120WPM
Bucket Capacity:  1600ml
Operation Panel: 7/10 inch for option
Power Supply : AC220V ±10%, 50Hz/60Hz, 1.5KW
Drive System: Step Motor
