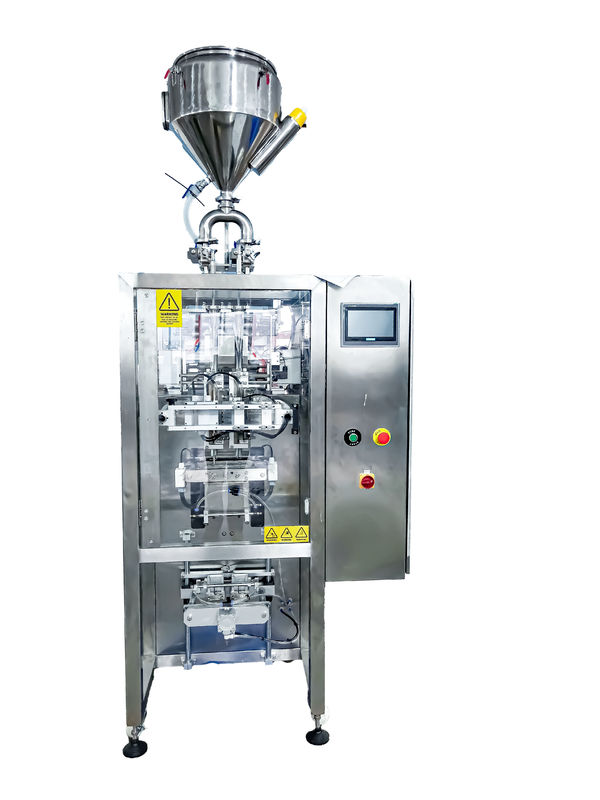

Double Row Premade Bag Packing Machine 20-40 Packs/Minute 304 Stainless Steel
  • Double Row Premade Bag Packing Machine 20-40 Packs/Minute 304 Stainless Steel
Double Row Premade Bag Packing Machine 20-40 Packs/Minute 304 Stainless Steel

Double Row Premade Bag Packing Machine 20-40 Packs/Minute 304 Stainless Steel

Place of Origin made in China
Brand Name pack mate
Model Number DS180T
Product Details
Product Type:
Powder/Particle/Liquid
Package Weight:
1-20g
Packaging Accuracy:
±1%-±10%
Packaging Bag Type:
Alien Customization
Package Film:
≤360mm
Bag Size:
W:50mm-180mm， L: W:50mm-150mm
Forming Way:
V-shaped Forming (adjustable Film Width)
Edge Width:
6mm （Oblique Mesh，spacing :0.6mm）
Packaging Film:
Composite Packaging Material Such As: BOOPP / PE
Highlight:

double row premade bag packing machine

,

double row premade pouch filling machine

,

40 packs/minute premade bag packing machine

Payment & Shipping Terms
Minimum Order Quantity
1
Packaging Details
customized
Delivery Time
45work days
Payment Terms
T/T
Product Description

Double Row Irregular Packaging Machine,20-40 Packs/Minute,304 Stainless Steel,Metering weight: 1-20gDouble Row Premade Bag Packing Machine 20-40 Packs/Minute 304 Stainless Steel 0

DS350F/N New four-side sealing automatic back sealing machine (304 stainless steel)

Technical data:
technical data describe
Material
 Particles/Powder/Liquid
Metering weight:
 1-20g
Packing speed
 20-40 bags/min (depend on material and package weight)
Package film:
 ≤360mm
Bag size:
 W:50mm-180mm, L: W:50mm-150mm
Forming way
 V-shaped forming (adjustable film width)
Bag type
 Four side seal
Edge width:
 6mm (Oblique mesh,spacing :0.6mm)
Pull bag way
 Motor pull bag(Frequency Control)
Horizontal sealing method
 Cylinder horizontal seal
Photoelectric eye
 LX101
Cutting way
 Flat cut (horizontal seal)
Packaging film:
 Composite packaging material such as: BOOPP / PE
Power supply
 220V/50HZ, Single phase 2.5 KW
Air pressure
 6 Kg
Air consumption:
 0.3 m3/ml



Basic feature:
Siemens 7' color touch screen + Siemens PLC with error prompts, self-diagnostics
Horizontal sealing frequency conversion bag, (Inovance inverter)
V-forming method
Manual correcting device
Taiwan AIRTAC Pneumatic Components
Yudian 2-way PID temperature module control
Schneider or Omron electrical components
The contact part with the material is made of stainless steel 304

Filling Device
UBA Filler for high viscosity
material:liquid and gel
range:0-20.1ml
accuracy:±1%
hopper:40L
temp: 0～40℃
material temp:60-70°
control:
controlled
by main machine, range and speed
