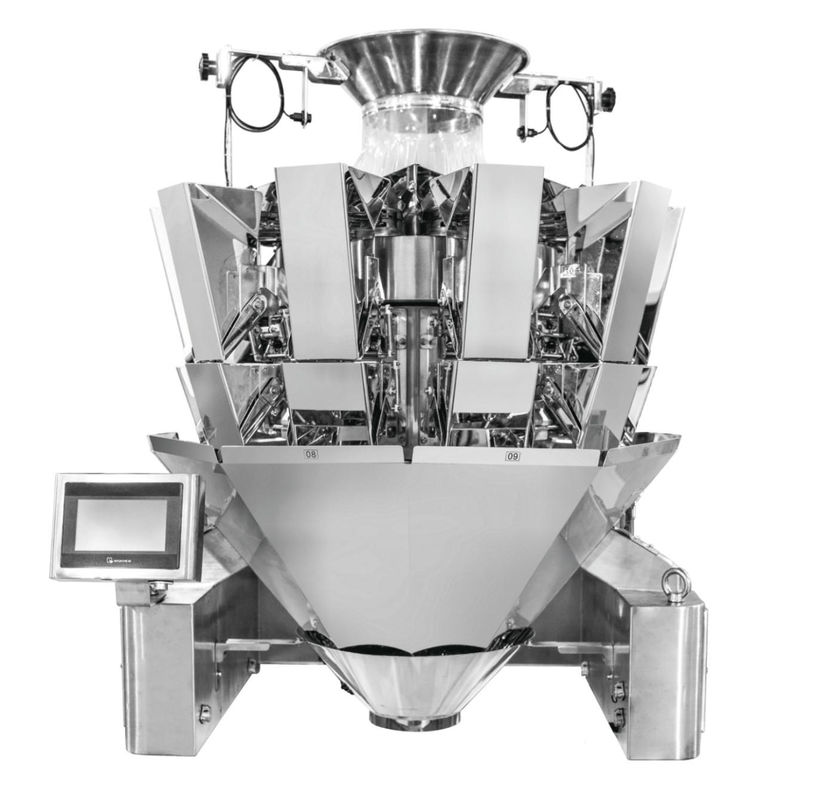

High Speed Weighing and Packaging Machine Export food weighing Packaging Machine

Scope of application

Suitable for quantitative weighing of various small granular and powdered materials, such as grains, seeds, sesame seeds, sugar, salt, monosodium glutamate, milk powder, coffee powder, seasoning powder, etc.

Functional characteristics:

It can weigh different materials simultaneously and mix and package them.

Multilingual control system

The feeding system adopts a stepless vibrating machine with adjustable amplitude to enhance the fluidity of materials.

According to the production situation, parameters can be directly modified during operation.

It can store 99 sets of parameter programs for easy selection.

· Leak-proof hopper is optional;

Specification parameters

Model Product model PM-H14L5

Head Weighing hopper number 14

Range single Weighing Range 10-2000g

Accuracy Weighing Accuracy ±0.2-3g

The maximum weighing speed of Max.Speed is 55WPM

Bucket Capacity: 5000ml

Operation Panel operation interface: 7-inch touch screen / 10-inch for option 7-inch / 10-inch touch screen optional

Power Supply Power supply specification: AC220V ±10%, 50Hz/60Hz, 1.5KW

Drive System Drive mode Step Motor Stepping motor

Packing Dimension: 1260(L)×1260(W)×1880(H) mm

Gross Weight: 460KG

Optional Devices: Dimple plate/Timing hopper/ Diverter device/ 10-inch touch screen/Teflon paint/Load cell top cone Patterned panel/Aggregate hopper/material distribution device / 10-inch touch screen/Teflon coating/weighing main oscillator
