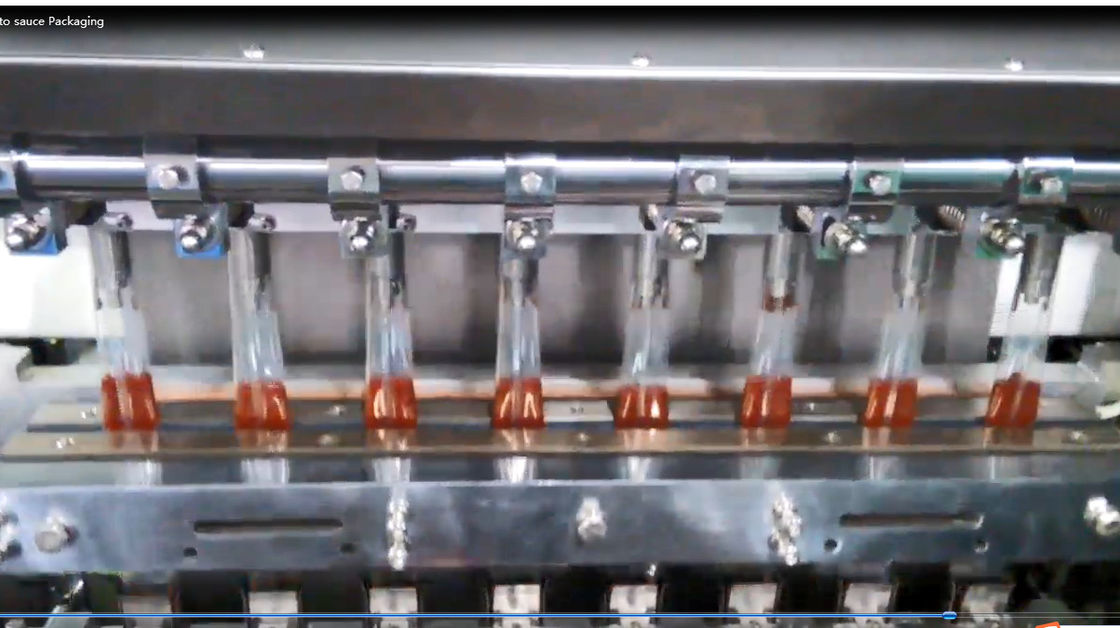

Multi lanes high speed automatic Tomato sauce packaging machine
  • Multi lanes high speed automatic Tomato sauce packaging machine
  • Multi lanes high speed automatic Tomato sauce packaging machine

Multi lanes high speed automatic Tomato sauce packaging machine

Place of Origin CHINA
Brand Name Packmate
Certification CE FCC ROHS
Model Number PM-TSP6
Product Details
Payment & Shipping Terms
Minimum Order Quantity
1SET
Price
1900$
Packaging Details
WOODEN
Delivery Time
14DAYS
Payment Terms
T/T
Supply Ability
150SETS/MONTH
Product Description

otal power :8KW

Air pressure :6kg/cm²(Gas consumption: 600 liters/minute)

Machine weight: 650

The machine's external dimensions are: length 1420× width 988× height 1500mm

Power supply: 220V/50HZ

Packaging materials: OPP/CPP, PT/PE, KOP/CPP aluminum-coated film, aluminum film

Host features:

The host adopts multi-axis servo independent drive, featuring fast response and precise movement

The servo motor of the control system adopts KOSSI(KoSI), which ensures more stable high-speed operation performance

The touch screen displays parameter Settings, as well as whether there are materials and whether they are bagged. It is convenient to change the specifications. The main adjustment parts are marked with rotation angles, such as the rotation Angle of the turntable

The bag-making and final sealing processes are controlled and adjusted by the temperature control module Autonics, with a stable deviation of ± 1°, ensuring that each pre-made bag can be sealed

The pneumatic components adopt the brand of Taiwan Airtac, and the bearings adopt the brand of Japan NSK

The corner insertion is carried out by using a rotary cylinder (EASUN), which is convenient for adjustment

Measuring device:

Linear scale packaging

LWS4/3 304 Stainless steel waterproof computerized linear Scale (including Installation bracket)

Technical parameters:

Weighing range: 10-2000g

Weighing speed: ≤ 55bags/min (varies depending on the weight of the package and the characteristics of the material)

Weighing accuracy range: X (0.5) grade approximately ±0.2 to 2g (depending on the material conditions)

Hopper capacity: 300ml

Drive mode: Stepper motor

Operating interface: Inovance7 'color touch screen

Body material: 304 stainless steel

Material of the scale bucket: 304 flat stainless steel

Power supply power: AC 220V/50HZ, 1KW/10A

Packaging weight (kg) : 150KG
