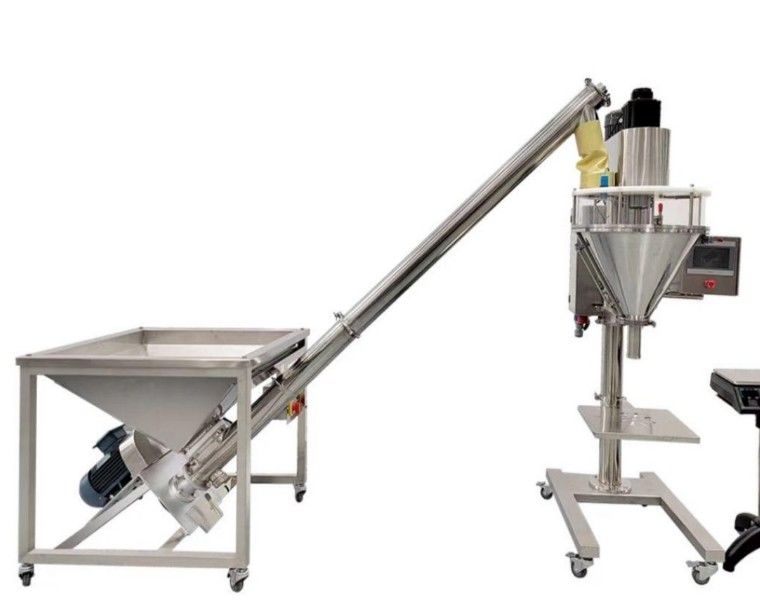

CCL-10L semi-automatic powder filling machine
1.1 CCL-10L semi-automatic powder filling machine
Technical parameters:
◇ Measuring range: 400-2000g (1 set of measuring screw 400-500g is randomly provided)
Filling accuracy: ±1-2%
Filling speed: 15-40 bags per minute
◇ Overall power: 2370W (2000W Inovance servo motor)
◇ Power supply: 380V 50HZ three-phase
The hopper capacity is available in 50L, 100L and 200L
Technical features:
Advanced human-machine control experience, 7-inch touch screen operation, PLC program control, with both Chinese and English operation languages, error prompt and self-diagnosis functions
Electrical components from Schneider or OMRON
The servo motor screw filling features high filling accuracy and fast efficiency
The stirring motor prevents the screw from emptying and the material from sticking to the hopper wall
Welded bracket, whole machine made of 304 stainless steel
Semi-open hopper structure (with detection switch to prevent the material door from not being closed tightly)
An acrylic window for observing the material level
Vertical short screw, 304 stainless steel, laser full welding, seamless
It is equipped with an independent electrical box, a filling platform and a foot-operated discharging switch
Universal wheels and feet (adjustable +50mm)
Stainless steel dust covers need to be added to the servo motor and the stirring motor
