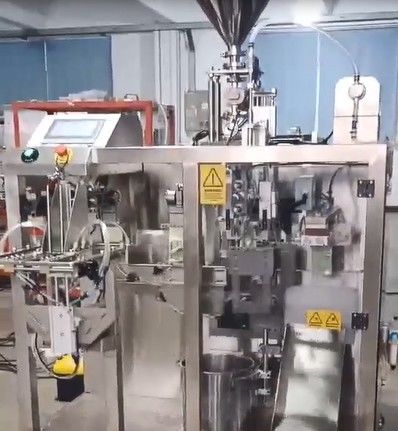

2025 New Version High Performance Food Packaging Machine

Packing Speed: ≤ 60bags/min
Bag size: length ≤40cm  width≤26cm
Work Station: 8 stations
Packaging fomat: Pre-made bag: Flat bag, stand up bag, zipper bag and M type bag and so on.
Power supply: 380V
Air Consumption: 5-7kg/c㎡  0.4m³/min
File material: single PE, PE composite film, paper film and various other composite film
Total power: 8KW
Machine weight: 580kg
Machine outside dimension: 185*125*152cm
Brand of Main Components:
Relay system/safety door: Omron
Start/stop/emergency stop button system/indicator light: Schneider
Circuit breaker: Chint
Temperature controller: Yuyao
PLC: Qichuang
Touch screen: Kunlun Tongtai
Switching power supply: Taiwan MeanWell
Servo motor: Huichuan
Reducer: Xinbao
Cylinder: AirTac

Conveying capacity: 0-10 m³/h
Specifications: Z-type conveying bucket capacity: 3.8L
Hopper volume: 120L
Reduction motor: worm gear reduction motor; installed on the upper side of the conveyor
With dust, sand and iron removal functions
Control: equipped with control box, variable frequency speed regulation
Material: 304 stainless steel
Total power: 1500W
Power supply: single-phase 220V /50Hz
Total weight: 300kg
