2025 Double Vibration Disc Multi-grain Back Seal Packaging Machine

EP180E-2ZP double vibration disc multi-grain back seal packaging machine

Packing material: Plastic round sheet

Packing speed: 15-35 bags/min (depending on quantity of material)

Packing range: single shock disc 1-16 pieces, double shock disc total 32 pieces

Packaging film width: to be determined (randomly equipped with 1 piece of molding)

Bag making capacity: W ≤75mm × L ≤ 150mm

Bag size: W=32mm×L≤ 150mm modified at 20250218

Sealing form: back sealing

Longitudinal seal pattern: straight grain (spacing 1.2mm) cylinder seal modified to 20250218

Cross seal: straight grain (spacing 1.5mm) Cross seal width: 8mm cylinder seal modified at 20250218

Longitudinal seal width: 8mm pneumatic seal modified at 20250218

Cutting mode: sawtooth cutting (middle out knife)

Bag pulling method: stepper motor bag pulling

Voltage power: 220V/50HZ 2.5kw modified at 20250218

Packaging film: composite packaging material, such as: BOPP/PE

Control mode: 7 "inch color touch screen + PLC (English and Chinese operating language), with error warning, self-diagnosis function, two PID temperature control.

Product features: Enhanced heat sealing mechanism, noise bottom, clear sealing lines, strong sealing.

Added exhaust pinhole function Modified in 2025

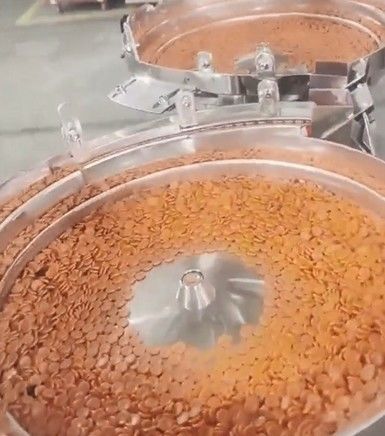

Measuring device: 300 type double vibrating disc

Linear vibration feeder

1-16 fixed length counting feeding device (fixed length control)

No material stop induction device

Vibrating disk bracket
