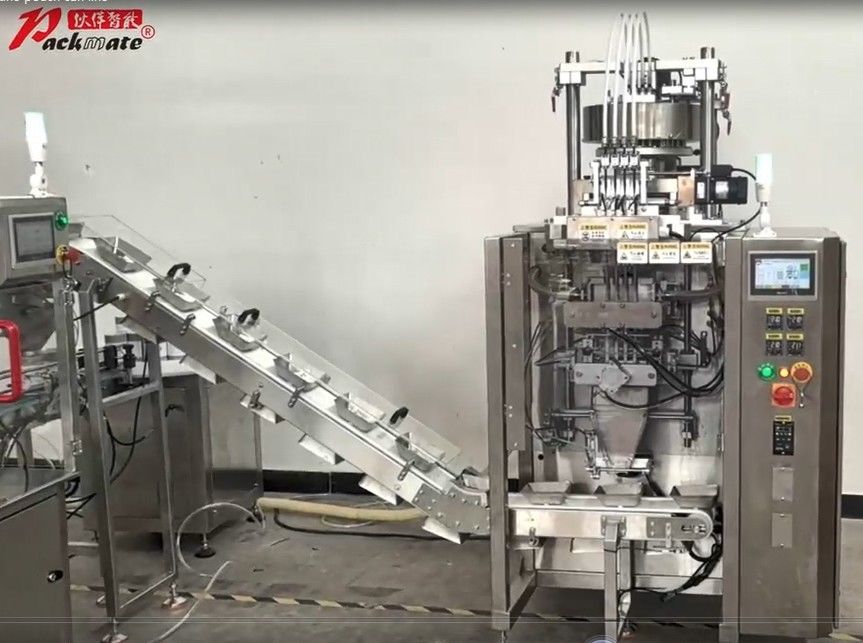

1.1 PM180LUD4-SYB 4-column ultrasonic back sealing automatic packaging machine for wet particles (wet rotary table measurement)
Technical parameters:
◇ Packaging materials: particles with humidity within 10%-35% (according to sample)
Packaging capacity: 0.4-0.6g/ bag Measurement accuracy: ≤±10%
◇ Packing speed: 30-40 bags/min (single column) * 4 columns
◇ Bag size: single row bag length: 34mm, single row film width: 30mm, the bag width borrows the previous stock machine parts, according to the bag width 12.3MM-25/3/20
◇ Packaging film width: 120mm
◇ Longitudinal seal sealing form: back seal mesh (according to sample), left and right fold seal
◇ Longitudinal sealing width: 6mm
◇ Transverse sealing method: ultrasonic sealing, diagonal mesh 1.2mm
◇ Transverse sealing width: 4mm
◇ Cutting mode: independent flat mouth cutting (according to sample bag)
◇ Packaging materials: composite packaging materials, such as: BOPP/PE
◇ Power supply: AC 220V/50HZ 3KW
◇ Air consumption: 6Kg, 0.6m3 /min
Basic configuration:
◇Inovance 7 'color touch screen + Inovance PLC (Chinese operation language), error prompt, self-diagnosis function
◇ Taiwan Airtac pneumatic components
◇ 4-way thermometer control
◇ Automatic deviation correction system
◇ Debugging waste bag automatic removal device
◇Schneider or OMRON electrical components
◇4 row cutter wheel paper splitting mechanism
◇ Feeding mode: gravity active feeding mode
◇ Cross seal pull bag, Inovance servo motor control
◇ Quick film connecting table
◇ Standard safety door switch (Panasonic door safety switch)
◇ Photoelectric function: None
◇ Frame, electric box made of 304 stainless steel or aluminum alloy, in line with GMP requirements
◇ Quick disconnecting structure design of longitudinal seal
◇ Cross seal top dust removal device (including vacuum cleaner)
1.1.A SYB-4-R 4-column rotary disk measuring device for wet particles
Technical parameters:
◇ Measuring range: 0.4-0.6g/ bag
◇ Metering adjustment: rotating disk type adjustable measuring cup
◇ Measurement accuracy: ±1-10% (depending on the characteristics of the filled material and filling speed)
◇ Drive mode: CAM divider
◇ Precision throttle valve controls auxiliary blowing and discharging device
◇ The silo is equipped with rotary dispersing material device to facilitate filling and ensure accuracy.
◇ 304 or aluminum alloy parts, the part in contact with the material is made of 304 stainless steel
◇ Easy to disassemble, clean design
◇ Air consumption: 6Kg, 0.8m3 /min
◇ Power supply: AC220V/50Hz, 0.4Kw
1.2 ZG135-75-01-00 Point stop bucket counting conveyor belt
Technical data parameters:
◇ Counting material: granule bag (according to sample)
◇ Counting quantity: 20 capsules/bucket. 140 capsules/can
◇ Fixed stop conveyor belt (cache complete count complete bag)
◇ Food grade PVC belt and stainless steel bucket
◇ Automatic positioning device (fixed stop conveyor belt positioning box)
◇ Connect with the feeding port of the packaging machine.
1.3 LP-750-00 automatic bottle sorting machine
Technical data parameters:
◇ Jar specifications: Diameter * Height = 75*135 mm (according to sample)
◇ Turntable diameter: 750 mm
◇ Power supply: AC220V,50Hz, about 0.2KW frequency conversion speed regulation
◇ Docking with conveyor belt
1.4 LHJ-SV-80- Automatic capping machine
Technical parameters:
◇ Cover speed: 30-40 boxes/min (variable frequency speed regulation)
◇ Cover specifications: according to customer samples
◇ Power supply: AC220V,50Hz, about 0.4KW
◇ Air consumption: 6Kg, 0.2m3 /min
◇ On the box: lifting conveyor belt center of gravity identification
◇ Control mode: controlled by automatic feeding and capping machine
◇Schneider or Omron electrical components
1.5ZG135-75-00 Automatic feeding and capping machine (including conveyor belt)
Technical parameters:
◇ Production speed: 1-15 boxes/min
◇ Jar specifications: Diameter * Height = 75*135 mm (according to sample)
◇ Power supply: AC220V,50Hz, about 0.4KW
◇ Air consumption: 6Kg, 0.3m3 /min
◇ Gland mode: pneumatic positioning gland
◇ Conveyor belt length: about 2m
◇ Schneider or Omron electrical components
