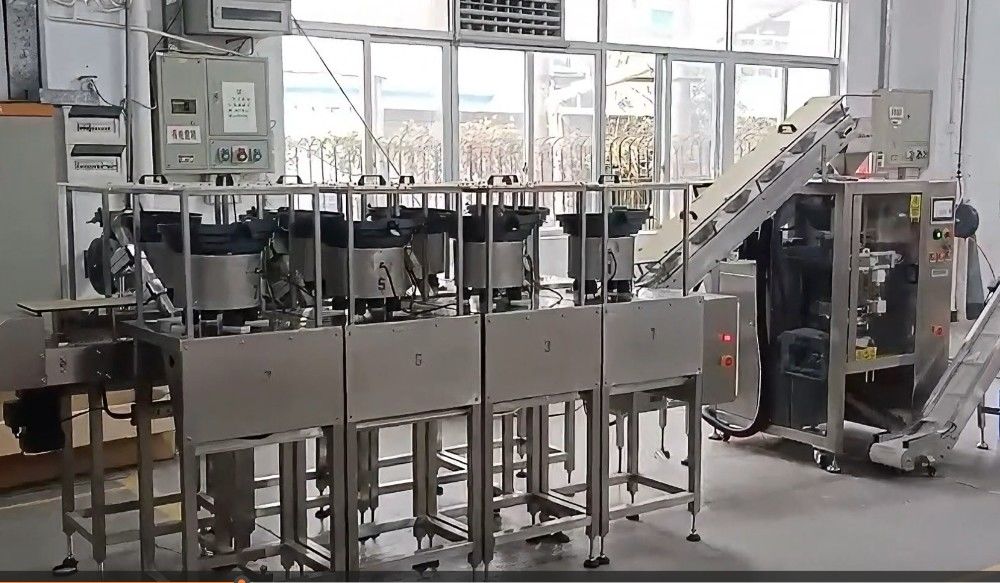

High Performance Counting And Multi-grain Back Seal Packaging Machine

 Multi-grain back seal packaging system

1.1 PM180E back Packing machine (304 stainless steel main machine)

Technical parameters:

Packing materials: soft capsules, hard capsules, tablets,

Packing capacity: 1-30g

Measuring accuracy: ±0.5g (Measuring accuracy may be different depending on the material)

Packing speed: 30-60 bags/min (depending on bag length and material condition)

Bag making capacity: 30mm ≤ W ≤80mm × 60mm ≤ L ≤150mm

Packaging film width: 170mm (maximum film width can be 180mm)

Sealing form: back seal, longitudinal seal without grain, back seal width: 10mm (see sample bag drawing)

Horizontal seal form: straight mesh (spacing 0.5mm), sealing width: 5mm (see sample bag drawing)

Cutting mode: flat cut (see sample bag drawing)

Ease mouth: V-shaped Ease mouth (see sample bag drawing)

Bag pulling method: cross seal hot seal bag pulling

Photoelectric switch: Julong

Packing material: composite packing material

Power supply: AC220V/50HZ,1.5KW

Air consumption: 6Kg, 0.3m3 /min

Basic configuration:

Inovance 7 'color touch screen +Inovance PLC (Chinese and English operating language),

With error prompt, self-diagnosis function

2-channel Omron PID temperature control (1 channel longitudinal seal, 1 channel transverse seal)

Schneider or Omron electrical components, Taiwan AIRTAC pneumatic components

Servo motor cross seal pull bag

The part in contact with the material is made of 304 stainless steel
