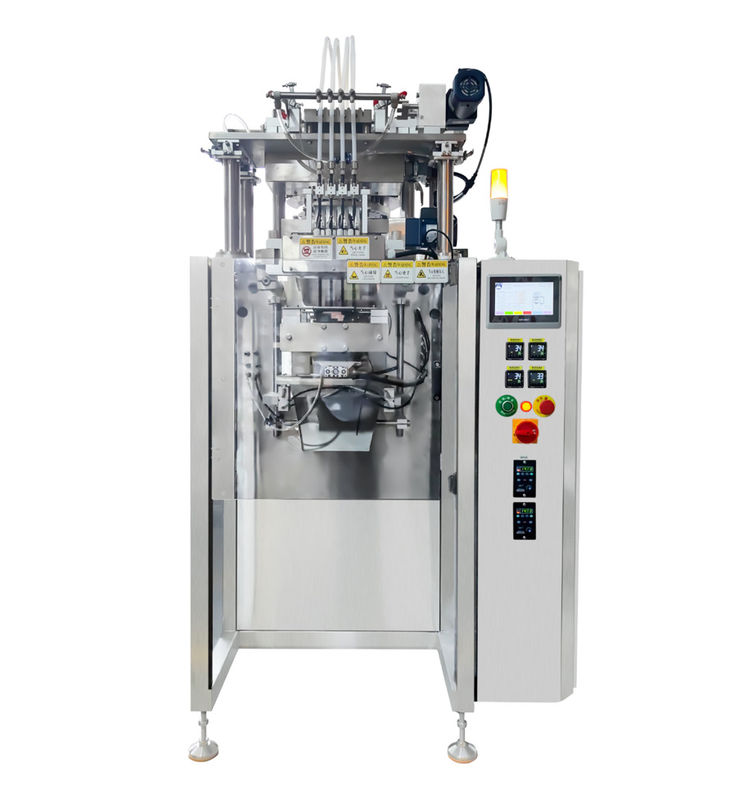

Snus And Nicotine Pouches Packing 4-lane Heat-seal Packing Machine

4-lanes automatic packaging machine for wet granules with back sealing (main machine)

Technical Specification:

◇ Packaging materials: Wet particles (as per sample)

◇Packaging capacity: packaging capacity: 0.4-0.6g/pouch, measurement accuracy: ≤±10%

◇ Packaging speed: ≤30-45 pouches/min (single lane) * 4 lanes

◇pouch size: single row: pouch length: 20-50mm, pouch width (non-adjustable): 13 mm, single row film width: 30mm

◇ Packaging film width: 120mm

◇ Sealing form: back sealing without pattern, left and right overlap sealing

◇ Sealing width: vertical sealing width: 4mm, horizontal sealing width: 5mm (subject to the sample pouch drawing)

◇ Horizontal sealing pattern: no vein and net vein, 2 sets of heat sealers

◇ Vertical sealing pattern: no vein and net vein, 2 sets of heat sealers

◇ Cutting method: flat cutting and serrated cutting, 2 sets of cutting knives

◇Packaging material: composite packaging material, such as: BOPP/PE

◇ Power supply: AC 220V/50HZ 3.5KW

◇ Gas source consumption:0.6-0.8Mpa,2.5-3 m³/min(for reference only,subject to actual application scenario)

Basic configuration:

• Inovance 7' color touch screen + Inovance PLC (Chinese operation language), error prompt, self-diagnostic function, alarm function for equipment operation short of film, safety door open, equipment operation abnormal, three-color alarm light.
• Taiwan Airtac pneumatic components
• 6-channel Omron temperature controller
• Manual deviation correction system
• Debugging the automatic waste pouch removal device
• Schneider or OMRON component
• 4-column electric knife wheel paper separator (without trimming device)
• Film feeding method: gravity-driven active film feeding
• Horizontal sealing and pulling pouch, controlled by Inovance servo motor
• The part in contact with the material is made of stainless steel 304 and food-grade polytetrafluoroethy lene
• Fast film attachment workbench
• Standard safety door switch (Panasonic door safety switch)
• Photoelectric function: none
• Racks, electrical boxes, and materials made of stainless steel 304 or aluminum alloy, in compliance with GMP requirements
• Dust removal device above the horizontal seal (with vacuum cleaner)
•
