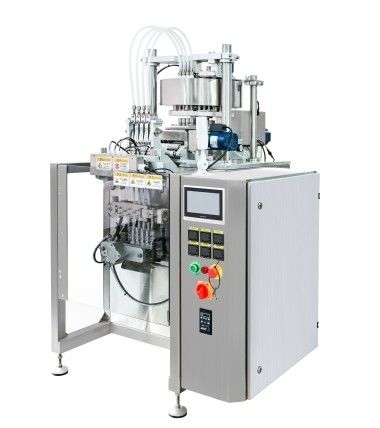

Snus And Nicotine Pouches Packing 4-lane Heat-seal Packing Machine

4-lane Heat-Sealing Packaging Machine

Technical parameter:

◇ Packaging material: oral smoke particles (by sample)

◇ Packaging capacity: 0.4-0.6g/bag Measuring accuracy: ≤±10%

◇ Packaging speed: 30-45 bags/min (single lane) * 4 lanes

◇ Bag making size: single lane: bag length: 20-50mm, pouch width: 13 mm, single lane film width: 30mm

◇ Packaging film width: 120mm

◇ Sealing form: back sealing without pattern, left and right overlapping

◇ Sealing width: vertical sealing width: 4mm horizontal sealing width: 5mm

◇ Horizontal sealing pattern: no pattern and mesh pattern 2 sets of heat sealers

◇ Cutting method: flat cutting and saw tooth cutting 2 sets of cutters

◇ Packaging material: composite packaging material, such as: BOPP/PE

◇ Power supply power: AC 220V/50HZ 3KW

◇ Gas source consumption: 6Kg, 0.6 m3/min

Basic configuration:

◇ Inovance 7' color touch screen + Inovance PLC (Chinese operating language), error prompt, self-diagnosis function, equipment operation lack of film, safety door open, equipment operation abnormality and other alarm functions, three-color alarm light

◇ Taiwan Airtac pneumatic components

◇ 6-way Omron temperature controller with temperature difference alarm

◇ Manual deviation correction system

◇ Debugging of automatic waste bag removal device

◇ Schneider or OMRON electrical components

◇ 4-row electric roller film separation

◇ Film feeding method: gravity active film feeding

◇ Horizontal seal bag pulling, Inovance servo motor control

◇ The part in contact with the material is made of stainless steel 304

◇ Quick film connection workbench

◇ Standard safety door switch (Panasonic door safety switch)

◇ Photoelectric function: None

◇ The frame, electrical box and the part in contact with the material are made of stainless steel 304 or aluminum alloy, which meets GMP requirements

◇ Dust removal device above the horizontal seal (including vacuum cleaner)

Metering device 1:

LG-4 4-lane horizontal screw metering device for dry particles

Technical parameters:

◇ Measuring range: 0.4-0.6g/bag

◇ Measuring method: horizontal screw

◇ Measuring accuracy: ±1-10% (depending on the characteristics of the filled material and the filling speed)

◇ Driving method: stepper motor

◇ Compressed air assisted blowing feeding device

◇ The silo is equipped with a rotating material breaking device to facilitate filling and ensure accuracy.

◇ 304 or aluminum alloy exterior parts, the parts in contact with materials are made of stainless steel 304

◇ Easy to disassemble and clean design

◇ Air source consumption: 6Kg, 0.8 m3/min

◇ Power supply: AC220V/50Hz, 0.4Kw

Measuring device 2:

TB-4 4-lane wet particle turntable metering device

Technical parameters:

◇ Measuring range: 0.4-0.6g/bag

◇ Measuring adjustment: adjustable measuring cup

◇ Measuring accuracy: ±1-10% (depending on the characteristics of the filled material and the filling speed)

◇ Driving mode: motor with divider

◇ Precision throttle valve controls auxiliary air blowing and unloading device

◇ The silo comes with a rotating material breaking device to facilitate filling and ensure accuracy.

◇ 304 or aluminum alloy exterior parts, parts in contact with materials are made of stainless steel 304

◇ Easy to disassemble and clean design

◇ Gas consumption: 6Kg, 0.8 m3/min

◇ Power supply: AC220V/50Hz, 0.4Kw

4-lanes automatic packaging machine for wet granules with back sealing (main machine)

Technical Specification:

◇ Packaging materials: Wet particles (as per sample)

◇Packaging capacity: packaging capacity: 0.4-0.6g/pouch, measurement accuracy: ≤±10%

◇ Packaging speed: ≤30-45 pouches/min (single lane) * 4 lanes

◇pouch size: single row: pouch length: 20-50mm, pouch width (non-adjustable): 13 mm, single row film width: 30mm

◇ Packaging film width: 120mm

◇ Sealing form: back sealing without pattern, left and right overlap sealing

◇ Sealing width: vertical sealing width: 4mm, horizontal sealing width: 5mm (subject to the sample pouch drawing)

◇ Horizontal sealing pattern: no vein and net vein, 2 sets of heat sealers

◇ Vertical sealing pattern: no vein and net vein, 2 sets of heat sealers

◇ Cutting method: flat cutting and serrated cutting, 2 sets of cutting knives

◇Packaging material: composite packaging material, such as: BOPP/PE

◇ Power supply: AC 220V/50HZ 3.5KW

◇ Gas source consumption:0.6-0.8Mpa,2.5-3 m³/min(for reference only,subject to actual application scenario)

Basic configuration:

• Inovance 7' color touch screen + Inovance PLC (Chinese operation language), error prompt, self-diagnostic function, alarm function for equipment operation short of film, safety door open, equipment operation abnormal, three-color alarm light.
• Taiwan Airtac pneumatic components
• 6-channel Omron temperature controller
• Manual deviation correction system
• Debugging the automatic waste pouch removal device
• Schneider or OMRON component
• 4-column electric knife wheel paper separator (without trimming device)
• Film feeding method: gravity-driven active film feeding
• Horizontal sealing and pulling pouch, controlled by Inovance servo motor
• The part in contact with the material is made of stainless steel 304 and food-grade polytetrafluoroethy lene
• Fast film attachment workbench
• Standard safety door switch (Panasonic door safety switch)
• Photoelectric function: none
• Racks, electrical boxes, and materials made of stainless steel 304 or aluminum alloy, in compliance with GMP requirements
• Dust removal device above the horizontal seal (with vacuum cleaner)
•
