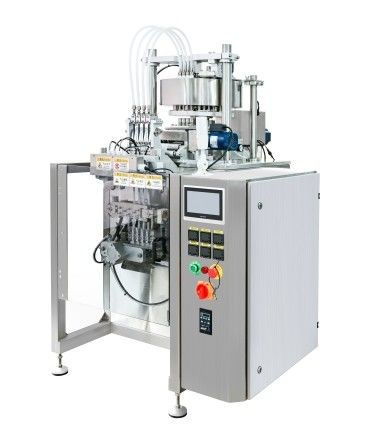

Customizable Nicotine Pouch Packaging Machine Back Sealing

Customizable Nicotine Pouch Packaging Machine

4-lane Heat-Sealing Packaging Machine

Technical parameter:

◇ Packaging material: oral smoke particles (by sample)

◇ Packaging capacity: 0.4-0.6g/bag Measuring accuracy: ≤±10%

◇ Packaging speed: 30-45 bags/min (single lane) * 4 lanes

◇ Bag making size: single lane: bag length: 20-50mm, pouch width: 13 mm, single lane film width: 30mm

◇ Packaging film width: 120mm

◇ Sealing form: back sealing without pattern, left and right overlapping

◇ Sealing width: vertical sealing width: 4mm horizontal sealing width: 5mm

◇ Horizontal sealing pattern: no pattern and mesh pattern 2 sets of heat sealers

◇ Cutting method: flat cutting and saw tooth cutting 2 sets of cutters

◇ Packaging material: composite packaging material, such as: BOPP/PE

◇ Power supply power: AC 220V/50HZ 3KW

◇ Gas source consumption: 6Kg, 0.6 m3/min

Basic configuration:

◇ Inovance 7' color touch screen + Inovance PLC (Chinese operating language), error prompt, self-diagnosis function, equipment operation lack of film, safety door open, equipment operation abnormality and other alarm functions, three-color alarm light

◇ Taiwan Airtac pneumatic components

◇ 6-way Omron temperature controller with temperature difference alarm

◇ Manual deviation correction system

◇ Debugging of automatic waste bag removal device

◇ Schneider or OMRON electrical components

◇ 4-row electric roller film separation

◇ Film feeding method: gravity active film feeding

◇ Horizontal seal bag pulling, Inovance servo motor control

◇ The part in contact with the material is made of stainless steel 304

◇ Quick film connection workbench

◇ Standard safety door switch (Panasonic door safety switch)

◇ Photoelectric function: None

◇ The frame, electrical box and the part in contact with the material are made of stainless steel 304 or aluminum alloy, which meets GMP requirements

◇ Dust removal device above the horizontal seal (including vacuum cleaner)

Metering device 1:

LG-4 4-lane horizontal screw metering device for dry particles

Technical parameters:

◇ Measuring range: 0.4-0.6g/bag

◇ Measuring method: horizontal screw

◇ Measuring accuracy: ±1-10% (depending on the characteristics of the filled material and the filling speed)

◇ Driving method: stepper motor

◇ Compressed air assisted blowing feeding device

◇ The silo is equipped with a rotating material breaking device to facilitate filling and ensure accuracy.

◇ 304 or aluminum alloy exterior parts, the parts in contact with materials are made of stainless steel 304

◇ Easy to disassemble and clean design

◇ Air source consumption: 6Kg, 0.8 m3/min

◇ Power supply: AC220V/50Hz, 0.4Kw

Measuring device 2:

TB-4 4-lane wet particle turntable metering device

Technical parameters:

◇ Measuring range: 0.4-0.6g/bag

◇ Measuring adjustment: adjustable measuring cup

◇ Measuring accuracy: ±1-10% (depending on the characteristics of the filled material and the filling speed)

◇ Driving mode: motor with divider

◇ Precision throttle valve controls auxiliary air blowing and unloading device

◇ The silo comes with a rotating material breaking device to facilitate filling and ensure accuracy.

◇ 304 or aluminum alloy exterior parts, parts in contact with materials are made of stainless steel 304

◇ Easy to disassemble and clean design

◇ Gas consumption: 6Kg, 0.8 m3/min

◇ Power supply: AC220V/50Hz, 0.4Kw

Product Description:

One of the key features of this product is its high speed packing capability. With 4 lanes, this packing machine can pack up to four snus pouches simultaneously, making it highly efficient for large-scale production. Moreover, it is specifically designed to pack products with high moisture levels, ensuring that your snus pouches are well-protected and properly sealed.

The control system of this 4-lane snus pouch packing machine is managed by a PLC control with touch screen interface. This allows for easy and efficient control of the machine, which helps to minimize downtime and improve productivity. The touch screen interface also provides real-time monitoring of the machine's operation, enabling operators to identify and address any issues quickly.

As a packing machine, this product is specifically designed to pack snus pouches. This ensures that it is highly specialized and optimized for this specific product type. This makes it the perfect choice for businesses that are looking for a reliable and efficient packing solution for snus pouches.

In conclusion, the 4-lane snus pouch heat sealing high speed high moisture level packing machine is a highly efficient and specialized packing machine. Its ability to pack up to four snus pouches simultaneously, coupled with its high speed and high moisture level packing capabilities, make it the perfect solution for businesses that require a reliable and efficient packing solution for snus pouches.

Features:

• Product Name: 4-lane snus pouch packing machine series
• Machine Dimensions: 2200mm (L) X 1200mm (W) X 1800mm (H)
• Power Supply: 220V/380V, 50Hz/60Hz, 3 Phase
• Pouch Size Range: Length: 40-120mm, Width: 20-60mm
• Sealing Type: back Sealing
• Machine Weight: 600kg

Introducing the 4-lane snus pouch heat sealing high speed high moisture level packing machine! This state-of-the-art machine boasts the following features:

• Efficient 4-lane packing for maximum productivity
• High speed packing for increased output
• Heat sealing technology ensures a tight seal for maximum freshness
• Designed for high moisture level products
• Capable of packing pouches with a length of 40-120mm and width of 20-60mm
• Uses 3-side seal technology for a secure pouch
• Machine dimensions are 2200mm (L) X 1200mm (W) X 1800mm (H)
• Weighs 600kg
• Power supply of 220V/380V, 50Hz/60Hz, 3 Phase for reliable operation

Technical Parameters:

Applications:

The packing machine uses a volumetric cup filler system for accurate and consistent filling. The filling system is designed to work with high moisture level products such as snus pouches. The machine can pack up to 120 pouches per minute, making it a high-speed machine suitable for large scale production.

The sealing type used in the PM180L4-SYB machine is a 3-side seal which ensures the pouches are tightly sealed to prevent any leaks or contamination. The machine uses heat-sealable laminated film as the packing material which is durable and can withstand the high moisture level of the snus pouches.

The packmate PM180L4-SYB can be used in various occasions and scenarios such as:

• Snus manufacturing plants: The packing machine is suitable for large scale production of snus pouches in manufacturing plants. The high-speed and accurate filling system makes it efficient for large scale production.
• Retail stores: The machine can be used in retail stores to pack snus pouches for sale. The 3-side seal ensures that the pouches are tightly sealed to prevent any leakage or contamination.
• Distribution centers: The packmate PM180L4-SYB machine can be used in distribution centers to pack snus pouches for transportation. The heat-sealable laminated film ensures that the pouches are well protected during transportation.

The machine requires an air pressure of 0.6-0.8MPa to function optimally. The packmate PM180L4-SYB is a reliable and efficient packing machine suitable for high-speed and accurate packing of snus pouches.

Customization:

But what really sets the PM180L4-SYB apart is its customization options. Need a specific pouch size or shape? No problem. Our team of experts can work with you to design a customized solution that meets your unique needs. We can also help you integrate the machine into your existing production line, ensuring a seamless transition and maximum efficiency.

So if you're looking for a 4-lane snus pouch heat sealing high-speed high moisture level packing machine, look no further than the PM180L4-SYB from packmate. Contact us today to learn more about our customization services and how we can help you streamline your production process.

Support and Services:

The 4-lane snus pouch packing machine series is designed to efficiently and accurately pack snus pouches into cans or other packaging containers. Our technical support team is available to assist with any questions or issues that may arise with the machine. We offer a range of services including installation, maintenance, and repair to keep the machine running smoothly. Our team can also provide training for operators to ensure optimal performance and minimize downtime. Additionally, we offer customization options to meet specific packaging requirements and production needs.

Packing and Shipping:

Product Packaging:

The 4-lane snus pouch packing machine series product will be carefully packed in a sturdy and durable cardboard box to ensure that it arrives at your doorstep in perfect condition. The machine will be securely fastened inside the box and all the necessary accessories and manuals will be included.

Shipping:

We offer fast and reliable shipping options for our customers. Once the order is confirmed, we will process and ship the product within 1-2 business days. The estimated delivery time will depend on your location and preferred shipping method.
