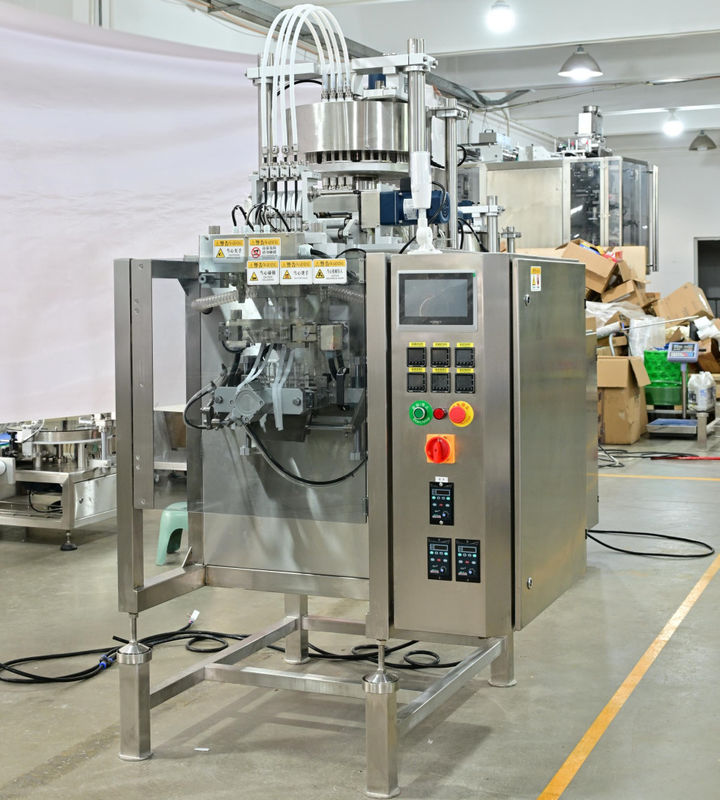

4-lane Heat-seal Huimid Powder Nicotine Pouch Packing Machine

• 4-lane Humid Powder Nicotine Pouch Machine-Heat Seal

1.1 PM180L4-SYB 4-lane humid powder nicotine pouch automated machine-thermal seal

Technical Parameters:

◇ Packing material: Humid powder (according to sample)

◇ Packing capacity: 0.4-0.6g /pouch, adjustable, Weighing accuracy: ≤±10%

◇ Packing speed: 30-45 pouch/min (single lane) * 4 lanes

◇ Pouch size:

Single lane : pouch length 20-50mm, pouch width (not adjustable): 13 mm, Single lane film width: 30mm

◇ Packing film width: 120 mm

◇ Sealing form: no vein on the back, left and right overlapped (can be customized)

◇ Seal width:

lengthwise seal width: 4mm, transversal seal width: 4 mm (according to sample)

◇ Transversal seal vein: no vein and net vein , 2 sets of heat sealers

◇ Cutting method: 2 sets of cutters for flat cutting and zigzag cutting

◇ Packing materials : composite packing materials, such as BOPP/PE

◇ Power supply : AC 220V/ 50HZ 3KW

◇ Gas consumption : 6Kg , 0.6 m3 / ^min

basic configuration:

• Inovance 7 ' color touch screen + Inovance PLC (Chinese operating language), error prompt, self-diagnosis function, equipment operation film missing, safety door open, equipment operation abnormality and other alarm functions, three-color alarm light
• Taiwan Airtac pneumatic components
• 6-way Omron temperature controller
• Manual correction system
• Debugging the automatic waste bag removal device
• Schneider or OMRON electrical components
• 4-lane electric cutter wheel paper separator (without waste film)
• Film feeding method: Gravity active film feeding
• Transversal seal bag, Inovance servo motor control
• The part exposed to the material is made of stainless steel 316L and food grade PTFE
• Rapid film splicing workbench
• Standard safety door switch ( Panasonic door safety switch)
• Photoelectric function: No
• The rack, electrical box and other materials are made of stainless steel 304 or aluminum alloy, which meets GMP requirements.
• Dust removal device above the Transversal seal (dust collector not included, dust suction port reserved)

1.2 SYB -4-R 4-lane humid powder rotary plate Weighing device

Technical Parameters:

◇ Weighing range: 0.4-0.6g/bag

◇ Weighing adjustment: Adjustable rotrary Weighing cup

◇ Weighing accuracy: ±1-10% (depending on the characteristics of the filled material and filling speed)

◇ Driving mode: Cam divider

◇ Precision throttle valve control auxiliary feeding device

◇ 304 or aluminum alloy exterior parts, parts exposed to materials are made of 316L stainless steel

◇ Easy to disassemble and clean design

◇ Gas consumption : 6Kg , 0.8 m3 / min

◇ Power supply: AC220V/50Hz, 0.4Kw
