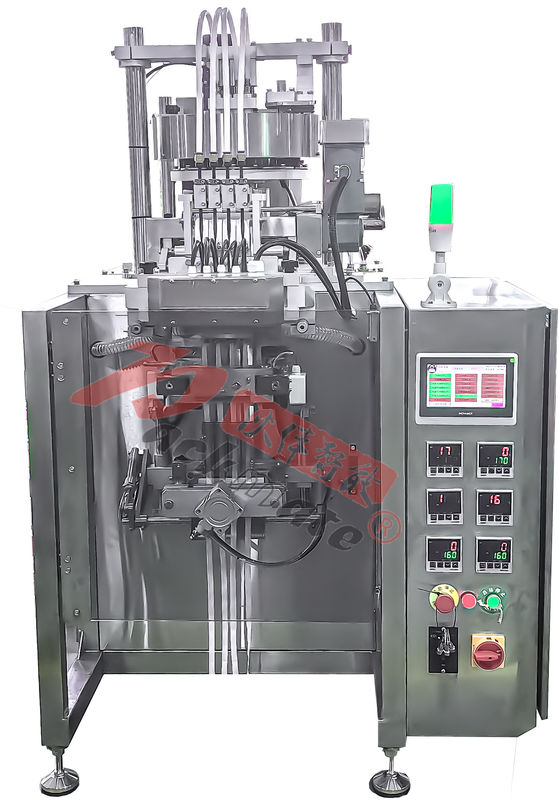

Snus Packaging Machine,180bag/Min,220V 50/50Hz

Pm180l4-syb four row snus small bag back sealing automatic packaging machine
Professional and exclusive technology, technical protection

Basic configuration:
◇ Inovance 7' color touch screen + Inovance PLC (Chinese or English), error prompts, self-diagnostic function, alarm functions for equipment running without film, safety door opening, abnormal equipment operation, and three-color alarm lights
◇ Taiwan Airtac pneumatic components
◇ 6-channel Omron temperature control meter with temperature difference alarm
◇ Manual correction system
◇ Debugging automatic rejection device for waste bags
◇ Schneider or OMRON electrical components
◇ 4-row electric hob film separation
◇ Film feeding method: gravity active film feeding
◇ Horizontal sealing bag, Inovance servo motor control
◇ The part in contact with the material is made of stainless steel 304
◇ Rapid film bonding workbench
◇ Standard safety door switch (Panasonic door safety switch)
◇ Photoelectric function: none
◇ The frame, electrical box and parts in contact with materials are made of stainless steel 304 or aluminum alloy, in compliance with GMP requirements
◇ Dust removal device above the horizontal seal (including vacuum cleaner)

SYB-4-R 4-row adjustable snus pocket rotary metering device
Technical parameters:
◇ Metering range: 0.4-0.6g/bag
◇ Metering adjustment: self-weight adjustable measuring cup
◇ Metering accuracy: ±1-10% (depending on the characteristics of the filler and the filling speed)
◇ Drive mode: cam divider
◇ Precision throttle valve control auxiliary feeding device
◇ 304 or aluminum alloy appearance parts, with stainless steel 304 material used for the parts in contact with the material
◇ Easy to disassemble and clean design
◇ Air consumption: 6kg, 0.8 m3/min
◇ Power supply: AC220V/50Hz, 0.4Kw
