Product Description:

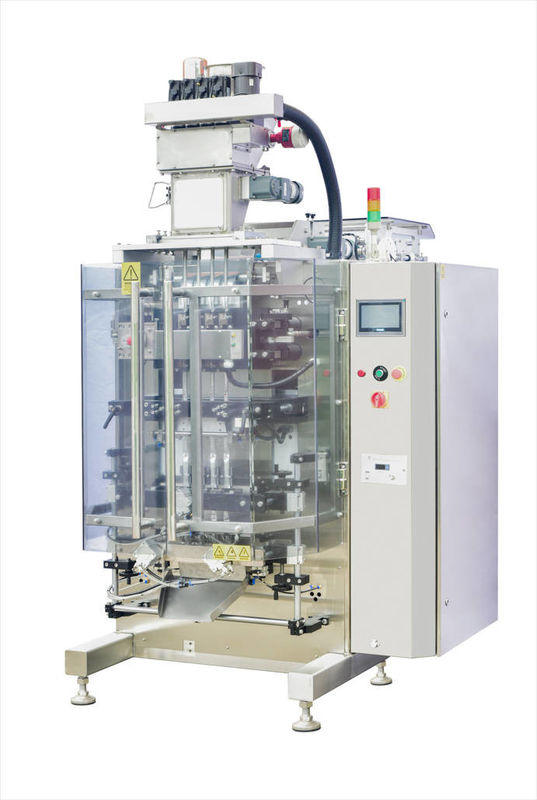

Our packing machine is an automatic bag filling and sealing machine designed for packaging various powdered, granular and liquid materials. It has a working voltage of 380V/50Hz Three-phase 8-18KW, depending on the number of columns. The gas source pressure is 7-8Kg and the gas consumption is 1.8m3/min. The horizontal sealing leak proof line is 1mm (only applicable to liquid packaging). The back sealing width is 4-6mm, with no pattern. In addition, it features an easy-to-tear mouth, either in the form of a point-shaped easy-to-tear mouth or a double easy-to-tear mouth, with an independent easy-to-tear mouth device. It is ideal for automatic bag filling, bag sealing, and flour packing.
Features:
- Product Name: packing machine
- Packaging speed: 30-60 Cuts Per Minute * 4 Columns (actual Speed Depends On The Measured Material Situation)
- Packaging film width: MAX450mm (standard With 1 Set Of Bag Making Specifications, No Flash)
- Packaging film: Composite Packaging Material
- Sealing form: Twisted Edge Adhesive Sealing
- Measurement accuracy: ± 1%-±10% (depending On Packaging Materials And Quantity)
- Features: Automatic Bagging and Sealing Machine, Automatic Pouch Sealing Machine, Automatic Bag Filling Machine
Technical Parameters:
| Parameter |
Details |
| Packaging materials |
Particles, Powders, Liquids (depending on packaging requirements) |
| Horizontal sealing width |
8-10mm, Single-sided Diagonal Mesh Pattern (spacing of 1mm) |
| Packaging capacity |
1-50ml |
| Working voltage |
380V/50HZ Three-phase 8-18KW (depending on the number of columns) |
| Cutting method |
Round Corner Cutting, Waste 2-3mm (independent Cutting Device) |
| Packaging film |
Composite Packaging Material |
| Basic configuration |
The Equipment Comes Standard With Three Color Safety Alarm Lights, Panasonic Safety Door Detection Switches, Emergency Stop Switches, and Other Devices. All Heating and Mechanical Action Positions Must Be Labeled With Safety Signs |
| Electrical components |
Schneider or OMRON Electrical Components |
| Sealing form |
Twisted edge adhesive sealing |
| Gas source pressure |
7-8Kg Gas Consumption: 1.8m3/min |
Applications:
The pack mate DS450-4G/P/L automatic pouch filling and sealing machine is made in China and has a minimum order quantity of 1. It offers a delivery time of 45 work days and payment terms of T/T. It has a horizontal sealing leak proof line of 1mm (only applicable to liquid packaging) and a packaging capacity of 1-50ml. It is equipped with Schneider or OMRON electrical components and the working voltage is 380V/50HZ three-phase 8-18KW (depending on the number of columns). It can be used for 4-9 columns, determined based on bag size (bag width specifications cannot be changed). This machine is ideal for automatic pouch filling, automatic pouch filling and sealing, automatic bag filling, and automatic bag filling and sealing needs.
Customization:
Automatic Pouch Packing Machine
Brand Name: Pack Mate
Model Number: DS450-4G/P/L
Place of Origin: Made in China
Minimum Order Quantity: 1
Delivery Time: 45work days
Payment Terms: T/T
Basic Configuration: The equipment comes standard with three color safety alarm lights, Panasonic safety door detection switches, emergency stop switches, and other devices. All heating and mechanical action positions must be labeled with safety signs
Applicable Columns: 4-9 columns, determined based on bag size (bag width specifications cannot be changed)
Packaging Film Width: MAX450mm (standard with 1 set of bag making specifications, no flash)
Electronic Eye: JULONG dual color photoelectric
Horizontal Sealing Width: 8-10mm, single-sided diagonal mesh pattern (spacing of 1mm)
Features
- Automatic pouch packing machine for flour
- High quality automatic bag packing machine
- Fast and efficient packaging process
- Easy to use and maintain
- Low energy consumption
Support and Services:
Technical Support and Service for Packing Machine
We provide comprehensive technical support and service for our packing machines. Our team of skilled engineers and technicians are available to provide you with the highest quality support and service. Our team is also available to provide you with on-site training and guidance on how to maintain and operate the packing machine.
We offer a range of support options to meet your needs. From telephone and email support to on-site visits and repairs, we can provide you with the assistance you need to keep your packing machine running smoothly.
We also offer a range of maintenance contracts to help you keep your packing machine in good condition. Our contracts include regular servicing, inspections, and repairs. This ensures that your packing machine operates at peak efficiency for as long as possible.
For further information on our technical support and service for packing machines, please contact us.
