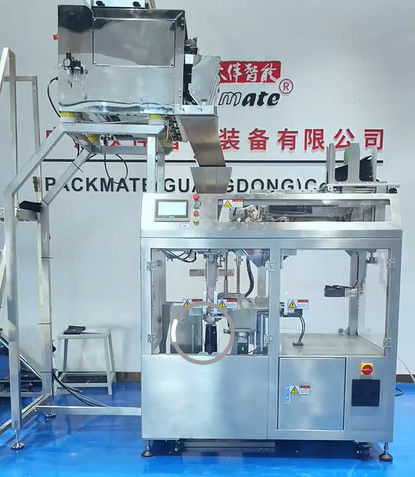

Technical parameters:
Speed: 10-40 packets /min
Packaging size: Bag length 180-280mm, bag width 50-150mm, bag height 40-100mm (according to customer sample bag)
Total power :8KW
Air pressure :6kg/cm²(600 liters/min)
Machine weight: 650
Machine dimensions: 1420 mm (length) × 988 mm (width) × 1500mm (height)
Power supply: 220V/50HZ
Packaging material OPP/CPP, PT/PE, KOP/CPP aluminized film, aluminum film
Host features:
The main unit adopts multi-axis servo independent drive, with fast response speed and precise movement Control system servo motors use KOSSI(KOSSI) for more stable performance at high speed
The touch screen shows parameter Settings, as well as whether there is material and whether there is bagging; It is convenient to change the specifications. The main adjustment parts are marked with rotation angles, such as the rotation Angle of the turntable
Bag-making and final sealing are carried out using temperature control module Autonics for temperature control adjustment and stability deviation within ± 1° to ensure that each pre-made bag can be sealed
Pneumatic components are of Taiwan AIRTAC brand and bearings are of Japan NSK brand
The corner is easily adjusted by using a rotary cylinder (EASUN)
